White Hi-Flux LED Tube Light for Backlighting Signs
Only 23Watts vs 160Watts, UL Registered, 12Vdc, 65° Wide Beam, Length 48"
Energy-Efficient, Incandescent or Fluorescent Replacement
Ideal for use with Alternate and Renewable Energy resources like Solar Power & Wind Power
Major Energy Reduction, Reduces Light Pollution, "Dark Skies" Initiative Friendly
Shopping Cart
View Cart
Check Out

Only LED tubes and power converters are sold.
Housing and signs are not supplied.

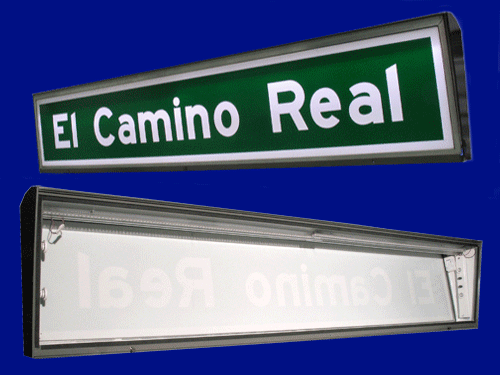

8ft Sign Surface Candela Sample Tests when Lit with 48" LED Tubes

LETTERS:
20-30cd Average
250-300 nits


Suggested number of LED tubes for different sizes of street signs
Sign Size Quantity of Tubes
8ft × 2ft 4 × TBL348
6ft × 2ft 4 × TBL348
4ft × 2ft 2 × TBL348

Canada/US UL-Listed
3KPU
IFDR.311089
IFDR7.311089  Certified for Canada
Features
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




• Patent No.: US 6,997,576 B1
All Series under this Category:
  TBL348_UL UL-Listed; 48in., Single & Double Snap-in Leads
  PWR-12VCV 0.5-0.25A Power Supply; 90/264VAC-to-12Vdc
TBL348 / TBL348C Series   Clear Lens 48-inch Tube Light

Illuminated TBL348 module. Picture is animated in "ON" and "OFF" mode.
Pure White 4500K Color, Wide Beam 65° (Plain Waterclear Tube Lens)
One end has wire leads1S1845M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Module
length
(inches)		Current
Per Module, A		Watts
per Module		Max Modules
per 1 Amp		Total
Candela		Total
Lumens		LED Emitting
Color		Full Viewing
Angle (2θ½)
TBL348-TPW-012V-UL
(12VDC,WhiteRoHSVC070308)
$119.55ea 1 12Vdc48-in.0.480 A5.762256304 lm    True White65°

Pure White 4500K Color, Wide Beam 65° (Plain Waterclear Tube Lens)
Wire leads at both ends2S1845M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Module
length
(inches)		Current
Per Module, A		Watts
per Module		Max Modules
per 1 Amp		Total
Candela		Total
Lumens		LED Emitting
Color		Full Viewing
Angle (2θ½)
TBL348C-TPW-012V-UL
(12VDC,White,48"LG,Clear,WRE,ULRoHSVC021)
$122.25ea 1 12Vdc48-in.0.480 A5.762256304 lm    True White65°

Other Colors available for large quantity orders (100 Modules plus)
Other Voltages available for large quantity orders (100 Modules plus)
Other LED Beam Angles for different effects available for large quantity orders (100 Modules plus)
Available in Ultra-Violet UV LEDs in 395nm or 405nm for large quantity orders (100 Modules plus)
Available in Infra-Red IR LEDs in 850nm, 880nm, 940nm for large quantity orders (100 Modules plus)
PWR-12VCV-3.33A-PF Accessory   Power Supply, 0.5–0.25A, Regulated 90-264VAC to 12VDC 3.3Amp max


PWR-12VCV-3.33A-PF

Input Voltage Range: 90 to 264VAC
DC Output Voltage: 12VDC (3.33A, 40W)
Input Current Max, typ: 115V/0.5A, 230V/0.25A
Operation Temp.: -30°C to +60°C
Humidity (Non-Condensing): 5% to 90%
UL / CUL Listed, CE Listed
IPGG Rated
Power Supply, 0.5–0.25A, Regulated 90-264VAC to 12VDC 3.3Amp max1S804M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
PWR-12VCV-3.33A-PF
(12VDC-3.33A,40W,INPUT90-264VAC,PF0.9{RE) 		$72.00ea 1

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Warranty
  • Pure White color temperature 4500K
  • Housing Material: Polycarbonate, UV protected, scratch & impact resistant
  • Mounting Clip Material: Polycarbonate, UV protected, scratch & impact resistant
  • Enclosure is sealed and moisture resistant
  • LEDs are solid-state, shock and vibration resistant. Light source runs on 12Volt DC systems like solar-cell power, 12Volt batteries, or 120Volt AC-to-12Volt DC power pack converters
  • No threat of high-voltage electrocution
  • LEDs have low power consumption, high intensity
  • White LED life of 50,000+ hrs
  • More slender and compact, takes up less space than T12 1½" tube lighting
  • Major reduction in power costs
  • LEDs produce little or no heat
  • No RF interference
  • No buzzing noise
  • No fluorescent flickering
  • Instant lighting from a cold start
  • Maintenance free
  • No hazard of mercury or lead entering the environment
  • No danger of broken glass
  • Quick mounting brackets provide ease of installation and lower installation costs
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Applications:
  • Street sign backlighting
  • Recreational vehicle interiors
  • Bus, shuttle, railcar passenger interiors
  • Uninterrupted emergency lighting
  • Interior design uses Retail store displays
  • Closet illumination
  • Cove lighting
  • Marine recreation applications
  • Concealed accent lighting
  • Edge lighting
  • Under counter lighting
  • Cubicle, workbench lighting
