| LED Street Light & Roadway Luminaire, High Power, Shoebox Style | |
| Only 96 Watt Replaces 250 Watt HPS or Metal Halide Fixtures | |
| Parking Lot Lighting • Roadway Lighting • Tunnel Lighting • Parks & Walkway Lighting | |
| Emerging Green Technology — Over 75% Energy Savings | |
| Typical Mounting Height: 14-24 feet | |
|
|
|
SlimLine Pole-Mount, for 70-100W HPS,Type III
|
SlimLine Pole-Mount, for 100-150W HPS,Type III
|
SlimLine Pole-Mount, 110°, for 150-175W HPS,TypeV
|
SlimLine Pole Mount, 12 Volt DC, Type III, Type V
| | |
Cost Savings
Estimate |
 |
(SLL003P-35X2W-XPW-005 sample) |
 |
 |
 |
(SLL003P-35X2W
looks similar to
SLL003P-70X2W.
Photo to come.) |
|
|
- Part Number: SLL003P-35X2W-XPW-005
- Beam Pattern: Type V
- 50% Field of View: 88°
- Line Input Voltage: 100-277VAC, Tested @ 120VAC
- Input Current: 0.799A
- LED Forward Current: 0.640A
- Energy Used: 96 Watts
- Emitted Color: Pure White
- Color Temperature: 6000K
|
- Power Factor: 1.0
- Total Lumens: 4130 lm
- Efficacy: 43 lm/W
- Max. Candela: 2355cd @ horiz.:0, vert.: 0
- Ambient Temperature: ~-22°F to ~+122°F
[~-30°C to ~+50°C]
- LED Cathode Temperature: 53°C [127.4°F]
- Dimensions: W16.5 in x H16.5 in x D7 in [41.8cm x 41.8 cm x 17.7 cm]
- Weight: 24 lbs [11 kg]
|
|
|
| |
|
|
|
All Series under this Category:
|
|
|
| All specifications and pricing subject to change without notice. |
| Features: |
- Five year warranty
- Very Low Power Consumption: Only 96 Watts
- Solid-state: High Shock / Vibration Resistant
- Long Life: White LEDs Last for 50,000+ Hours (5.7+ Years) of Continuous Operation
- Less Weight: Weighs Only 24 lbs as Compared to 39-42 lbs Conventional Lighting
- Optimized Circuitry: Power Factor Corrected for Maximum Efficiency
- Instant-On: No Delay in Re-Strike
- Super Intensity: 2,355 Footcandles
- Reduces Light Pollution: “Dark Skies Initiative”-Friendly
- Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
|
| Options: For qualified applications and large quantity orders |
- Other Voltages Available
- Other LED Colors Available
- Narrow Beam Angle or Wider Beam Angle Available

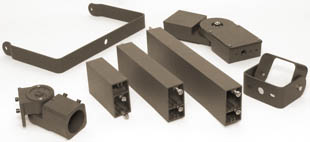

- Various Mounting Hardware Available
|
| Applications: |
- Parking Structures
- Building Mounts
- Up/Down Spotlighting
- Pole-Mounted Area Lighting
- Sign Lighting
- Tunnel Illumination, Cave Illumination, Mining Illumination
|
| Materials / Construction: |
- Housing: Die-cast aluminum housing and hinged front frame, ½" coin plugs for conduit and photocell, textured architectural bronze powdercoat finish over a chromate conversion coating.
- Lens: Tempered flat clear glass lens.
- Fixture is intended for indoor or outdoor use, and designed to protect against windblown dust, rain, splashing and direct hose “washdowns.”
- Major Energy Savings: Over 65% Compared to Incandescents
- Extended Life: Maintenance-Free for Over 5 Years
- No Harmful Infrared
- No Ultraviolet Emission: Does Not Attract Insects
- Reduces Light Pollution: No Wasted Light
- Enhances Vision: Better Optical Acuity, Little or No Disability Glare as Compared with High Glare from HID Lamps
- High CRI: Rendering Index of 72.5 Enhances All Colors
| Major |
Commercial |
1.20 |
3.0 to 1 |
| Intermediate |
0.90 |
3.0 to 1 |
| Residential |
0.60 |
3.5 to 1 |
| Collector |
Commercial |
0.80 |
3.0 to 1 |
| Intermediate |
0.60 |
3.5 to 1 |
| Residential |
0.40 |
4.0 to 1 |
| Local |
Commercial |
0.60 |
6.0 to 1 |
| Intermediate |
0.50 |
6.0 to 1 |
| Residential |
0.30 |
6.0 to 1 |
| Parking Lot |
Open Space |
0.5 - 2.0 |
4:1 |
Notes:
1. Source: Illumination Engineering Society of North America, "Lighting Handbook", 8th Edition, 1993.
2. Footcandle is the amount of direct light thrown by one candle on a square foot surface, every part of which is one foot
away from the candle.
3. Illuminance uniformity ratio is the average illuminance of the roadway design area between two adjacent divided by the
lowest value at any point in the area.
|
|
|
|
|
