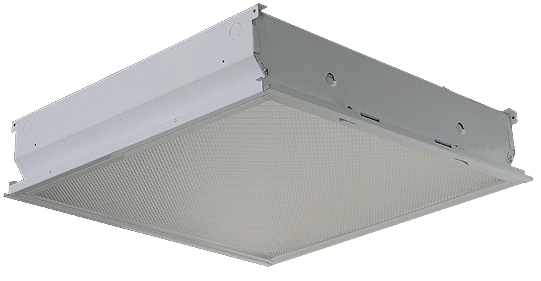

LED Luminaire Module, 2ft by 2ft, Recessed T-Bar Ceiling,
Replace Two or Four 4ft-Tubes, 90-264VAC
"400" Unit Is Only 24W — Comparable to 64W Fluorescent Fixtures,
"800" Unit Is Only 36W — Comparable to 80W Fluorescent Fixtures
LED Office Lighting - LED Closet Lighting - LED Hallway Lighting - LED Classroom Lighting - LED Work Room Lighting - LED Conference Room Lighting
Solid-State Lighting Creates Less Heat Compared to Conventional Lighting, Reducing Air Conditioning Demands
Uses Half the Area Needed by 4ft-Tubes — For Typical Ceilings of 8 feet to 10 feet in Height
Shopping Cart
View Cart
Check Out
Specifications
  • Part Number: CLL2X2-x00-TPW-001W
  • Input Voltage: 100-277VAC (50/60Hz)
  • Power Consumption: 24W, or 36W
  • Color Temperature: 5000K
  • Lens/Window: Prismatic Acrylic in 20ga Steel Frame
  • Housing: 22ga Steel with Baked White Polyester Finish
  • Complies with RoHS
  • Mounting Methods: Recessed Mounting Between Ceiling T-Bars
  • Recommended Mounting Height: 8ft to 10ft [2.4m to 3m]
  • Dimensions: 23.75 × 23.75 × 5 inches (Nominally 2'×2'×5" [600×600×127, mm])
  • Weight: 16.0 lbs [7.25 kg]
  • Ambient Room Temperatures: ~-22°F to ~+122°F
    [~-30°C to ~+50°C]
  • LED Cathode Temperatures: 84.2°F to 93.7°F [29°C to 34.3°C]
Features
Options
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  CLL2X2_001W 2'×2' Ceiling Luminaire
CLL2X2_001W Series   2ft.-Square Modular Ceiling Lighting
Pure White; Variable Voltage 100-277VAC LED Office Ceiling Light Module1S870M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYDescriptionInput Voltage, V
(typ)		Current, AEnergy Used,
W		Total
Lumens		Efficacy
lm/W		Maximum
Candela		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Weight, lbs [kg] Approx.Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		CLL2X2-400-TPW-001W
(100-277VAC,T.White)
Print datasheet.
Use website data for latest product info 		CALL Replaces standard 2'×2' fluorescent 64W unit100-277VAC (50/60Hz)
Tested @ 120VAC		0.203A24.3 W1840 lm76688cd1.0754800K~5200K    True White16 lbs [7.25 kg]100°-105°
TO ORDER, CALL US
@ 800-579-4875 		CLL2X2-800-TPW-001W
(100-277VAC,T.White)
Print datasheet.
Use website data for latest product info 		CALL Replaces standard 2'×4' fluorescent 80W unit100-277VAC (50/60Hz)
Tested @ 120VAC		0.301A35.8 W2753 lm771079cd0.99754800K~5200K    True White16 lbs [7.25 kg]100°-105°

All specifications and pricing subject to change without notice.
 Features:
  • LEDtronics Designed LEDs: For longevity and intensity
  • Lamp Warranty: Three years
  • No buzzing or flickering: No fluorescent drawbacks
  • Easy Installation: With existing T-bar recessed 2ft.×2ft. module light fixtures
  • LED Operating Life: Up to 50,000+ Hours (5.7+ years of continuous use)
  • Accepts North American 110/120V 50/60Hz, European 220/240V 50/60Hz voltages, and 277VAC.
  • Even Lighting: High Intensity / No Halation, Glare-free Environment
 Options:  For qualified applications and large quantity orders
  • Other colors, Cool White, Warm White
  • Special voltages
  • Black enamel or anodized aluminum finishes
 Applications:
  • Replaces Standard Fluorescent Fixtures
  • Office Lighting
  • Alcove Lighting
  • Hallway Lighting
  • Schoolroom Lighting
  • Studio Lighting
  • Lobby Illumination
Benefits:
  • Major Power Savings: Up to 50% compared to fluorescent lighting
  • Greater Longevity: 2 to 3 times longer than standard fluorescents
  • Solid-State: High-shock and high-vibration-resistance
  • Radiation-Free: No Harmful UV or IR
  • Harmful Substances: No mercury or other toxic metals escaping into the environment
Construction:
  • Door Frame: 20 ga. Cold-rolled steel. T-hinge, positive spring-loaded latch.
  • Housing: 22ga. Cold-rolled steel.
  • Finish: Baked white polyester, minimum reflectance of 86%
  • Lens: Clear prismatic acrylic standard
  • Housing construction meets UL standards. UL-rated power supply.
