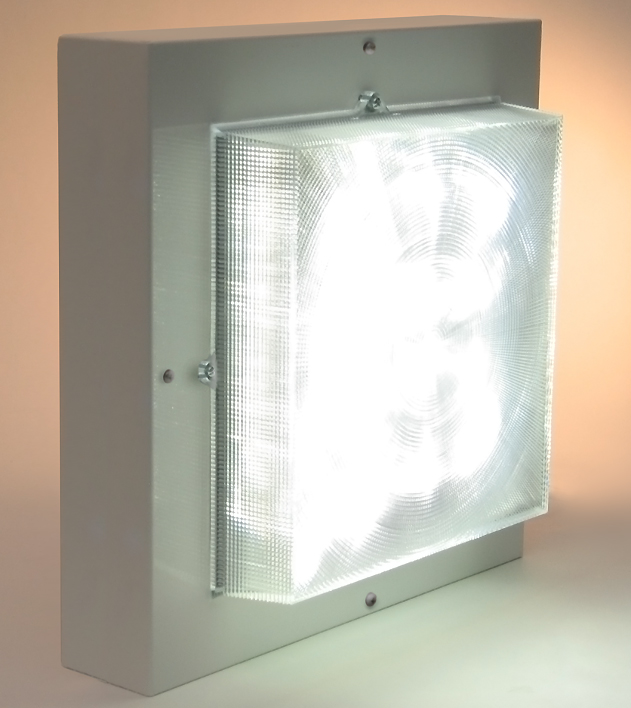

Canopy/Garage Wall Surface Security Luminaire
Wide-Range Input Voltage; 100VAC to 277VAC
Emerging Green Technology
80°–85° Beam Spread Lighting Pattern (2θ½)
Shopping Cart
View Cart
Check Out
LED Ceiling/Wall Luminaire, Slim Line, 12 Volt DC Canopy/Garage Wall Surface Security Luminaire High-Power Security LED Luminaire
  Click to enlarge

Cost Savings
Estimate


Click to enlarge
Click to enlarge
Specifications
  • Part Number: SLL016-16X2W-XPW-001
  • 50% Field of View: 80°–85°
  • Line Input Voltage: 100-277VAC, Tested @ 120VAC
  • LED Forward Current: 0.510A
  • Energy Used: 40 Watts
  • Emitted Color: Pure White
  • Color Temperature: 6000K
  • Package Includes:
    Tamper-Proof Screws & Tool
    2” Snap-in Bushing
  • Power Factor: 0.9
  • Total Lumens: 1900 lm
  • Efficacy: 50.2 lm/W
  • Max. Candela: 886cd @ horiz.:180, vert.: 0
  • Mounting: Flush mount/Side KOs for ½" Conduit
  • Ambient Temperature: ~-22°F to ~+122°F
    [~-30°C to ~+50°C]
  • Dimensions:
    W13-3/8 in. × H13-3/8 in. × D3-5/8 in. [34cm x 34cm x 9.2cm]
  • Weight: 8.6 lbs [3.9 kg]
Features
Applications
Contact Us
Email This Page
National Stock Number
Products on this page are




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  SLL016-16X2W Canopy/Garage Wall Surface
SLL016-16X2W_001 Series   Parking Garage Lighting, Security Lighting
Canopy/Garage Wall Surface1S976M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, APower FactorTotal
Lumens		Efficacy
lm/W		Maximum
Candela		CRIColor Temp.
(Kelvin)		Weight, lbs [kg] Approx.LED Emitting
Color		Illumination
Pattern		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		SLL016-16X2W-XPW-001
(100-277VAC,P.White) 		CALL 100-277VAC39 W--0.92008 lm51.5886cd765500K~6350K8.6 lbs [3.9kg]    Pure WhiteType V80°–85°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Warranty
  • Long Life: LEDtronics lamps are designed for 50,000 hours of continuous operation
  • 80° Lighting Pattern
  • Wide-Range Input Voltage
  • Simple, 2-fastener Mounting
  • Electronic Instant-Start
  • Reliable Minimum Starting Temperature: 0°F [-17.8°C]
  • "Instant On" with no delay in re-strike
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Applications:
  • Public Spaces Where Vandalism May Be a Problem
  • Ideal for Canopies, Pedestrian Tunnels, Stairwells, Corridors, Garages and Parking Structures
  • Suitable for Damp Locations
Construction:
  • Polycarbonate, Injection-Milded Lens
  • Neoprene Gasket between Fixture Pans and Exterior Housing
  • 18ga. Electro-Galvanized Paintlok™ Steel Construction
  • 20ga. Fixture Pan with 18ga. Exterior Housing
  • 20ga. and 24ga. Cold-Rolled Steel Internal Components
  • Baked White-Powder Coated Finish (Paint after Fabrication)
