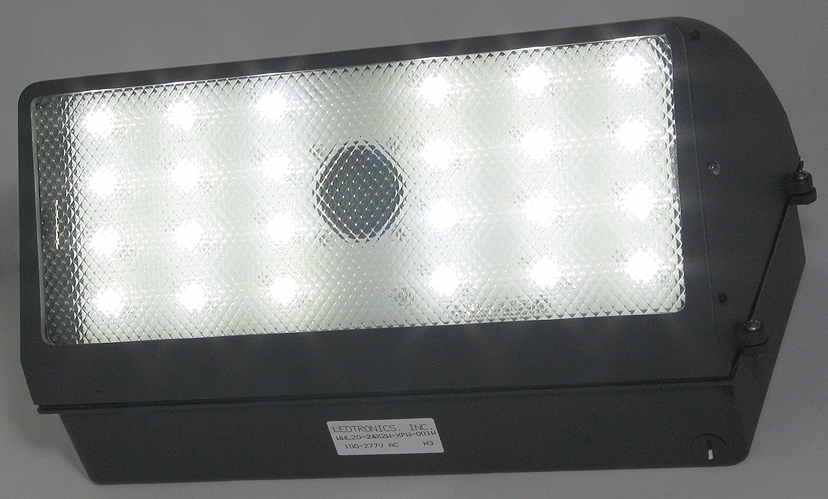

LED Flood Light, Wall-Pak Style, Hi-Power, Security, Wall-Wash, Uplight Signs
Wall-Pak Luminaire for Ceiling Mounting, Wall Mounting, and Signage Illumination
Emerging Green Technology
80°–85° Beam Spread (2θ½) Projecting from a 35° Angle to the Mounting Surface Plane
Wide-Range Input Voltage; 100VAC to 277VAC
3075 Lumens
Shopping Cart
View Cart
Check Out
LED Swivel Floodlight, 12VDC LED Swivel Floodlight, 90-264VAC LED Swivel Floodlight, 10-30VDC Wall-Pak Floodlight, 100-277VAC

Click to open large photo in new window
Dimensions in inches [mm]
Specifications:
  • Dimensions: L17" × W9" × H9.5"
  • IP rating of this enclosure is IP65: Totally protected against dust and protected against low pressure jets of water from all directions. Limited ingress permitted.
Features
Applications
Contact Us
Email This Page
National Stock Number
Products on this page are




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  WWL20-24X2W Canopy/Garage Wall Surface
WWL20-24X2W Series   Wall Washing & Security Lighting
  Wall Paks used at military base.
Click to Application Article

Wide-Angle Beam, Non-Dimmable (On/Off Only)
Warm White, 3000K w/ Bronze Color Housing; Adapts to North American Voltage or European Voltage1S763M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		Illumination
Pattern		CRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		WWL20-24X2W-XIW-001W
(100-277VAC) 		CALL 100-277VAC
(Tested @ 120VAC)		55.6 W0.482 A41.52305 lm1415cd (h90° v55°)circular beam 50°ang853000K    Warm Whitehoriz:34° vert:147°

Pure White, 6000K w/ Bronze Color Housing; Adapts to North American Voltage or European Voltage2S763M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		Illumination
Pattern		CRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		WWL20-24X2W-XPW-001W
(100-277VAC)
Print datasheet.
Use website data for latest product info 		CALL 100-277VAC
(Tested @ 120VAC)		56.2 W0.474 A54.73075 lm1566cd (h270° v60°)circular beam 50°ang765500K~6350K    Pure Whitehoriz:34° vert:172°

Pure White, 6000K w/ Silver Color Housing; Adapts to North American Voltage or European Voltage3S763M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		Illumination
Pattern		CRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		WWL20-24X2W-XPW-101W
(100-277VAC)

Print datasheet.
Use website data for latest product info 		CALL 100-277VAC
(Tested @ 120VAC)		56.2 W0.474 A54.73075 lm1566cd (h270° v60°)circular beam 50°ang765500K~6350K    Pure Whitehoriz:34° vert:172°

All specifications and pricing subject to change without notice.
 Features:
  • Lamp Warranty: 5 Years
  • Long Life: LEDtronics lamps are designed for 50,000 hours of continuous operation
  • Twenty-four White, 2W Bright LEDs
  • Solid State: High Shock- and Vibration-Resistant
  • Power Factor Corrected for Maximum Efficiency
  • Electronic Instant-Start
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
  • IP rating of this enclosure is IP65
 Applications:
  • Parking Areas
  • Building Entrances / Perimeter Lighting for Security
  • Walkways / Stairwells / Corridors
  • Loading Platforms
  • Recreational Areas
Benefits:
  • Major Energy Savings: Consumes Only 56 Watts
  • Very Low Power Consumption: Super-Intensity 1,515 Footcandles
  • Reduces Light Pollution — Night Vision Friendly

Materials / Construction:
  • High-Impact, Heat-Resistant Lens: Polycarbonate Shield Designed to Distribute Light Evenly along Building Front
  • Die-Cast Aluminum Housing: One-Piece, Hinged Back Provides Strong Support and Maximum Heat Dissipation
  • High Power-Factor Ballast: Constant-Current Power Supply
  • Weatherproof: One-Piece Silicone Gasket Completely Seals Housing and Lens Frame, Locking out Moisture and Dust. Lens Frame Secured to Housing with 2 Stainless-Steel Screws.
  • Easy Mounting: Top- and Side-Entry ½" Threaded Hub for Thru-Wire Installation. Easily Installs over Standard 4" Box.
  • Durable, All-Weather Architectural Bronze Finish
